Bauer Dual Disk Attrition Mill למכירה במענית 35000 שח | ציוד לתעשייה - מכונות

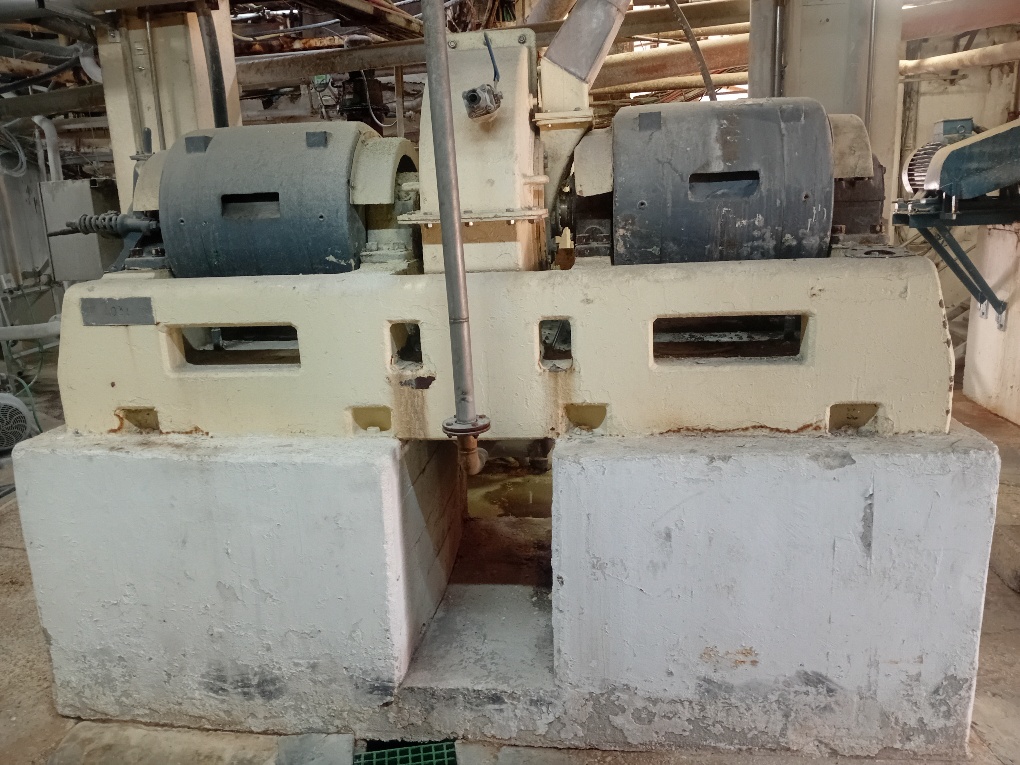

תמונה 1, Bauer Dual Disk Attrition Mill למכירה במענית | ציוד לתעשייה מכונות

מטחנת דיסקים מסיבית לגרעיני דגנים וקיטניות. BAUER double-disc attrition mill, Model 400-36 (dual-motor arrangement). The machine has a central vertical feed body that appears to split product into two opposed grinding ends. • It has two large end belt/drive guards, one on each side, which is characteristic of a double-disc / double-motor attrition mill Operating principle A Bauer mill in corn wet milling is an attrition mill. One rotating and one stationary plate, both equipped with spiked tooth blades, to
open steeped corn kernels and release germ with controlled damage. Industrial practice commonly uses two grinds, with a closer second gap, to improve germ release while minimizing oil loss from damaged germ. Built for heavy continuous service, with a central feed throat and robust cast/fabricated base. Important caution on capacity The official ANDRITZ disc-mill sheet gives capacity in bushels/day for corn wet milling, and for the 400-36 double-disc mill the listed figure is 20,000 bushels/day, marked as a third-stage grind capacity estimate. That means it is not automatically the same as dry-maize flour plant throughput. Real output changes materially with: • wet vs dry process, • kernel conditioning / steeping, • target particle size, • plate design, • gap setting, • feed moisture, • whether the machine is used for degerminating, refining, or coarse first-
duty. Materials and construction For the current disc-mill family, ANDRITZ states: • double-disc mills are available in carbon or stainless steel, and • product areas can be 316 stainless steel. BAUER / Sprout-Bauer 400-36 double-disc mill double-disc configuration, • 36 in. disc size, • dual-motor layout, • central feed body, large heavy foundation/base proportions. • 250 HP x 2 • 72 x 54 x 138 in. • 10,400 lb less motors • approx. 20,000 bushels/day in the ANDRITZ wet-milling reference. Technical Specifications Table Item Value Probable model BAUER / Sprout-Bauer 400-36 double-disc attrition mill Machine type Double-disc attrition mill / disc mill Disc diameter 36 in. Power requirement 250 HP x 2 motors = 500 HP total ≈ 373 kW total Voltage (example observed on listed machine) 575 V, 3-phase Approx. capacity 20,000 bushels/day in ANDRITZ sheet for double-disc 400-36 Approx. capacity in mass terms About 560 short tons/day, or about 23.3 short tons/hr; roughly 21.2 metric t/h Height 72 in. (without motor height effect) Width 54 in. Length 138 in. Weight 10,400 lb without motors ≈ 4,717 kg Construction Product-contact area available in 316 stainless steel; machine available in carbon or stainless execution depending on build Drive arrangement Overhead V-belt drive on double-disc mills Gap adjustment Sliding / quick-release plate-gap adjustment Primary use Corn wet milling: first/second-stage degerminating or later refining; other industrial grinding duties also possible
